This is part of the Audit Logging suite described in Appendix L: Audit Logging.

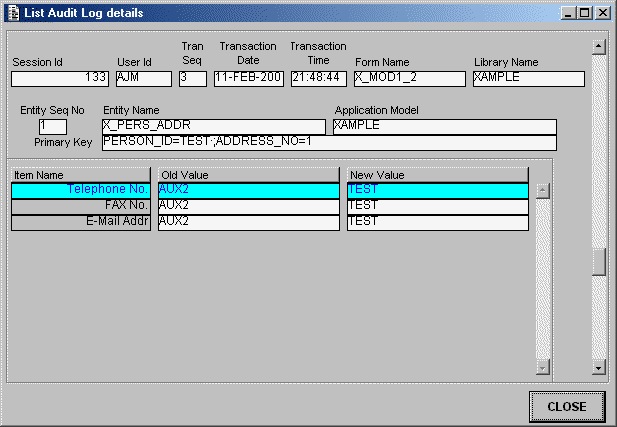

This will enable the User to view the Audit Log entries which satisfy the selection citeria entered on the parent form MNU_0115S.
This form uses a database view which combines the two entities AUDIT_HDR (transactions) and AUDIT_DTL (occurrences) into a single unit. This enables the selection criteria to span both of those entities without causing a problem.
There are two scroll bars on this screen which deal with the following:-
| Session Id | Unique identifier for the session. |
| User ID | Identifies the User. |
| Tran Seq | Transaction Sequence Number - starts at 1 for each session, and is incremented for each transaction. |
| Transaction Date Transaction Time |
The date and time at which this transaction began. |
| Form Name | The component name from where the User initiated the transaction. |
| Library Name | The name of the Application Library used by Form Name. |
| Ent Seq No | Entity Sequence Number - starts at 1 for each transaction, and is incremented for each entity occurrence that is updated. |
| Entity Name | The name of the entity (database table) that was updated. |
| Application Model | The name of the Application Model to which Entity Name belongs. |
| Primary Key | The unique identity for this occurrence. This is an associative list showing both the items names and their values. |
| Item Name | Identifies which item (field) was updated. If a field label has been defined in the application message file with the id 'L_<fieldname>' then this will be used instead of the actual field name. |
| Old Value | The value before it was updated. |
| New Value | The value after it was updated. |
| Close | Exit this transaction. |
 |
