dict_column(list2) - List Columns by Table

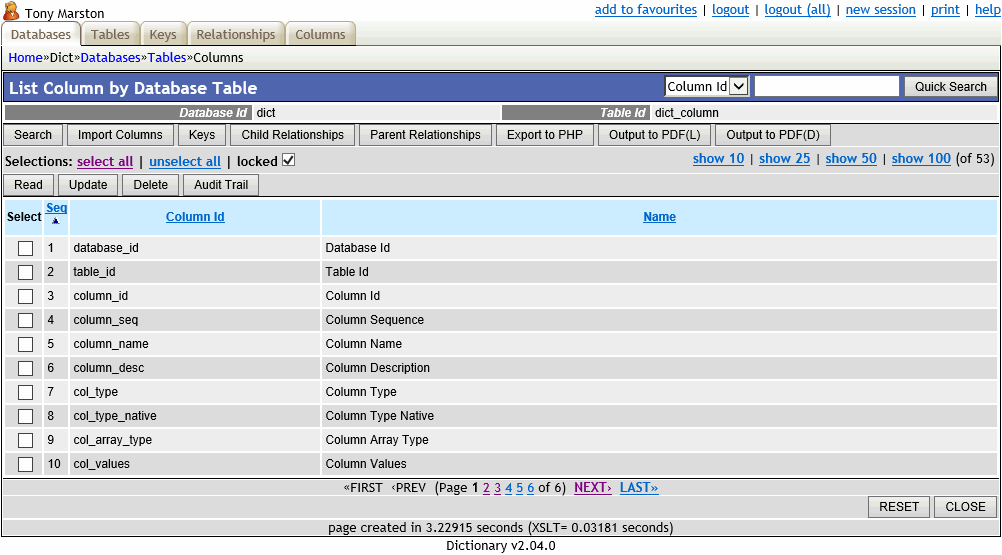

dict_column(list2) (24K)

The purpose of this form is to allow the user to browse through the contents of the DICT_COLUMN table of the dictionary database for a selected DICT_TABLE.

This form is accessed by an option on the navigation bar in the List Table screen.

For a complete description of how this type of form works please see Transaction Pattern LIST 2.

ButtonAction
Search Will refine the selection criteria for this screen by activating Search Column
Import Columns Will import table names into the dictionary database by activating Import Columns
Keys This will show Keys for selected Tables by activating List Keys by Table
Child Relationships Will show all child Relationships for the current Table by activating List Child Relationships by Table.
Parent Relationships Will show all parent Relationships for the current Table by activating List Parent Relationships by Table.
Export to PHP Will export dictionary details for the selected table(s) by activating Export to PHP
Read Will view the details of selected entries by activating Enquire Column
Update Will update selected entries by activating Update Column
Delete Will delete selected entries by activating Delete Column
Output to PDF(L) Will produce printable output as described in Output Columns to PDF (List view).
Output to PDF(D) Will produce printable output as described in Output Columns to PDF (Detail view).
Audit Trail Will show the audit trail (LIKE) for selected entries as described in Appendix L.
